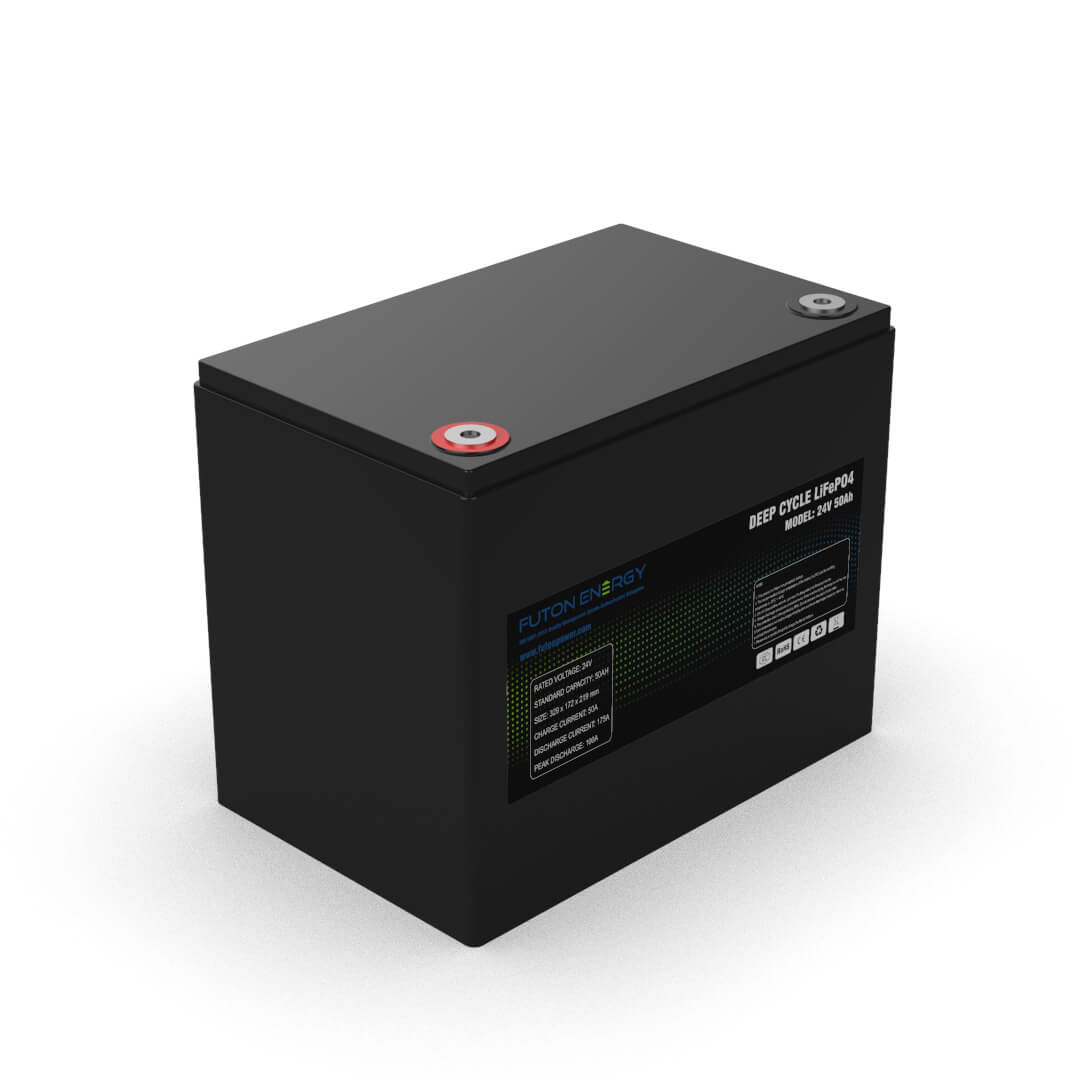

24V 50Ah Lithium Battery

It is widely used for EVs and battery packs for solar energy storage, UPS, Security system etc. With high discharge current and high power density, it can be used in the field of electric vehicles, locomotives, forklift trucks, E-bike, UPS systems, Security systems, etc.

Additional information


329x219x172mm(12.95"x 8.62"x 6.77")



Nominal Voltage


Nominal Capacity


Product Details

LiFePO4 batteries are simply known as lithium iron phosphate batteries. They are composed of lithium iron phosphate as the cathode and graphite carbon electrode on the anode. They have a built-in BMS that plays a big role in helping them prevent battery pack over-discharge, over-current, and short circuit.

They have less weight and high power discharge making them stay for long when fully charged. It weighs 32 pounds and measures 13 by 6.85 by 8.5 inches.

The battery management system (BMS) also helps ensure the lithium battery has short circuit protection, cell balancing, and reverse polarity protection. You can be able to charge the battery at any level without fear of explosion since they have no memory.

Their main applications are in:

  • UPS
  • Security system backup
  • Solar backup
  • Telecommunications backup
  • Robotics
  • Van
  • Marine
  • Camper
  • RV
  • Motor home
  • Golf cart


Life Cycle

With more than 2,000 cycles at 80% DOD(depth of discharge).

Operating Temperature

Charge: 0°C to +60°C

Discharge: -20°C to +60°C


50A max, please use the LiFePO4 charger to charge the battery.


50A continuous discharge current, 100A peak discharge current.

BMS(Battery Management System)

Protect the battery from high voltage, low voltage, over-charge, over-discharge, short circuit, and high temperature.

Performance Characteristics
