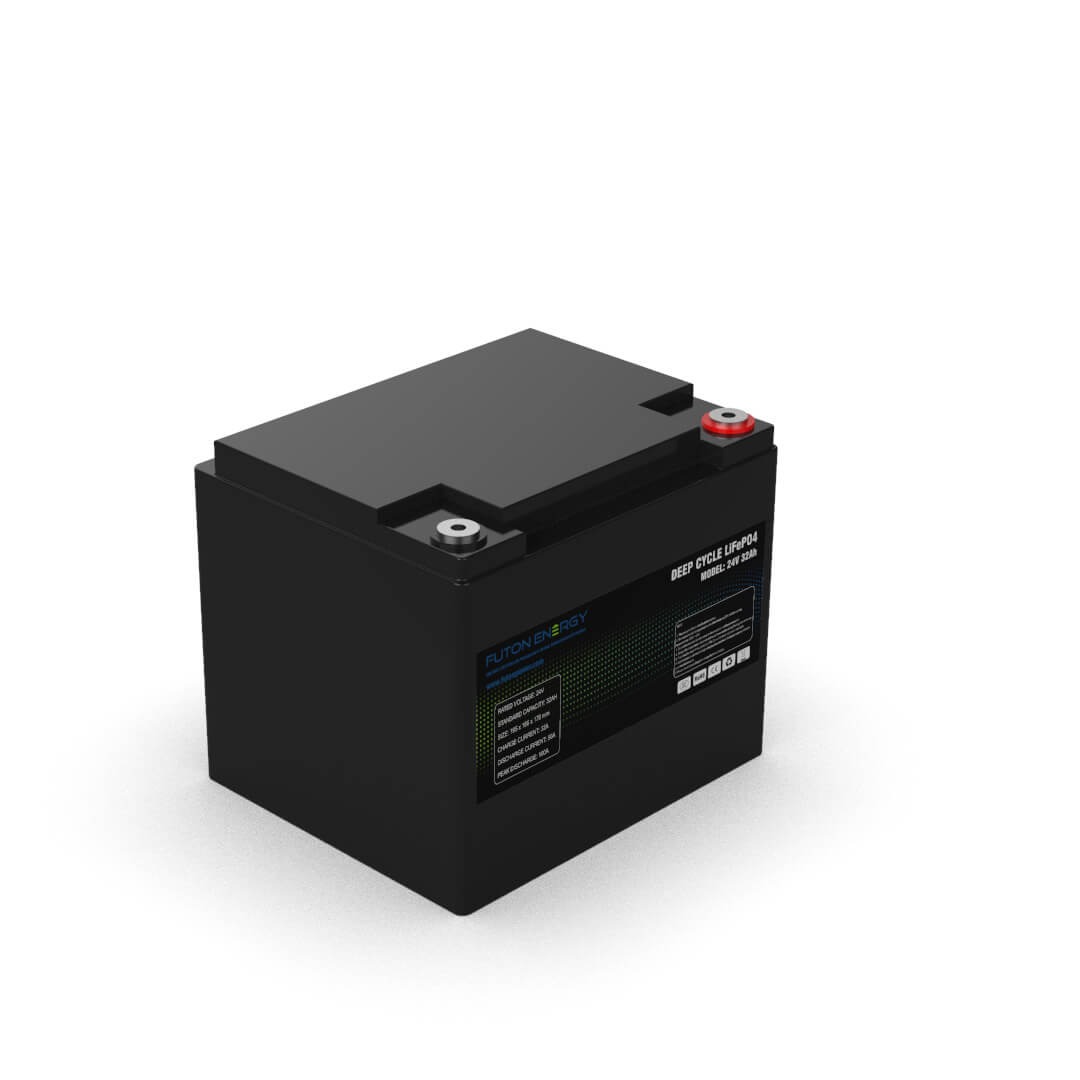

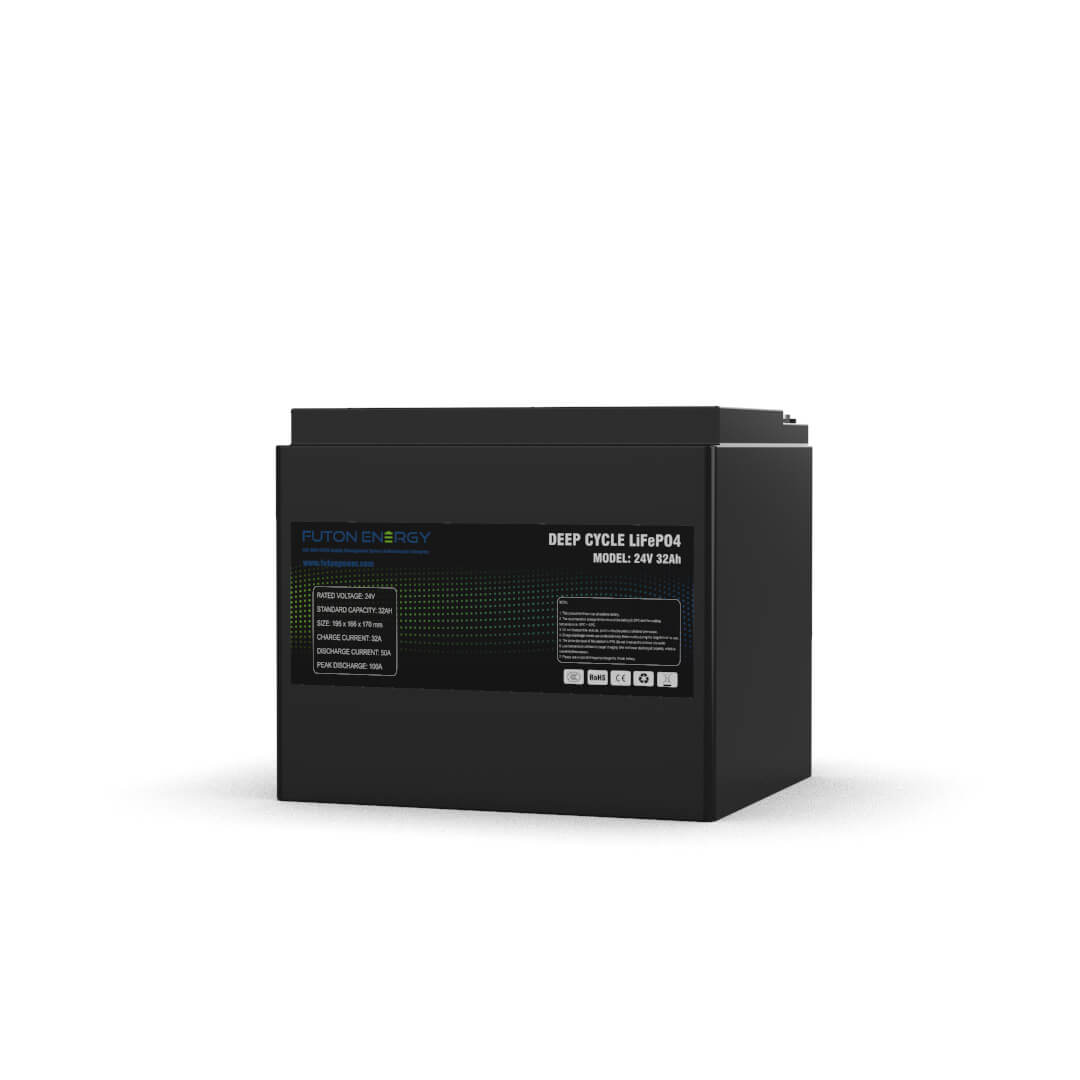

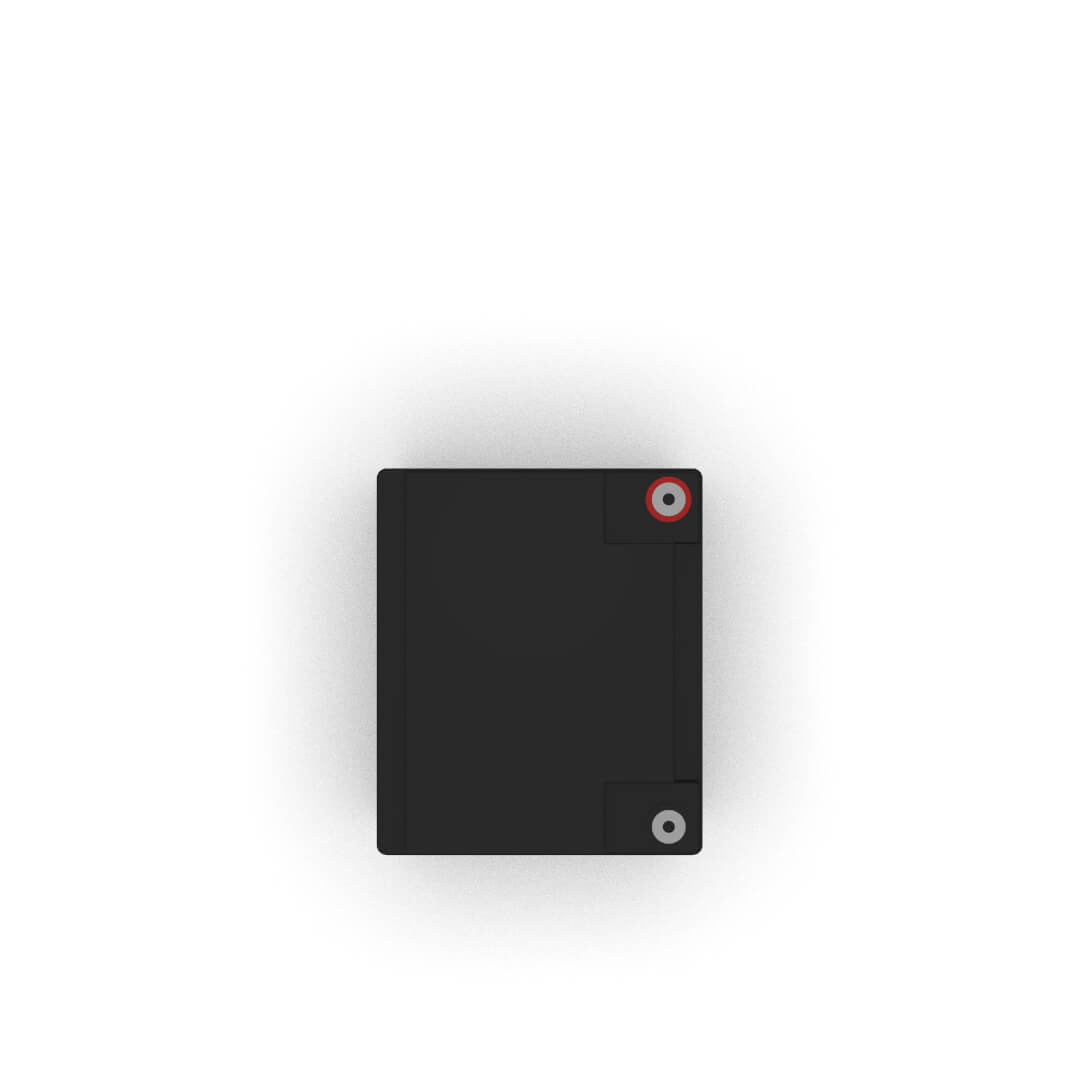

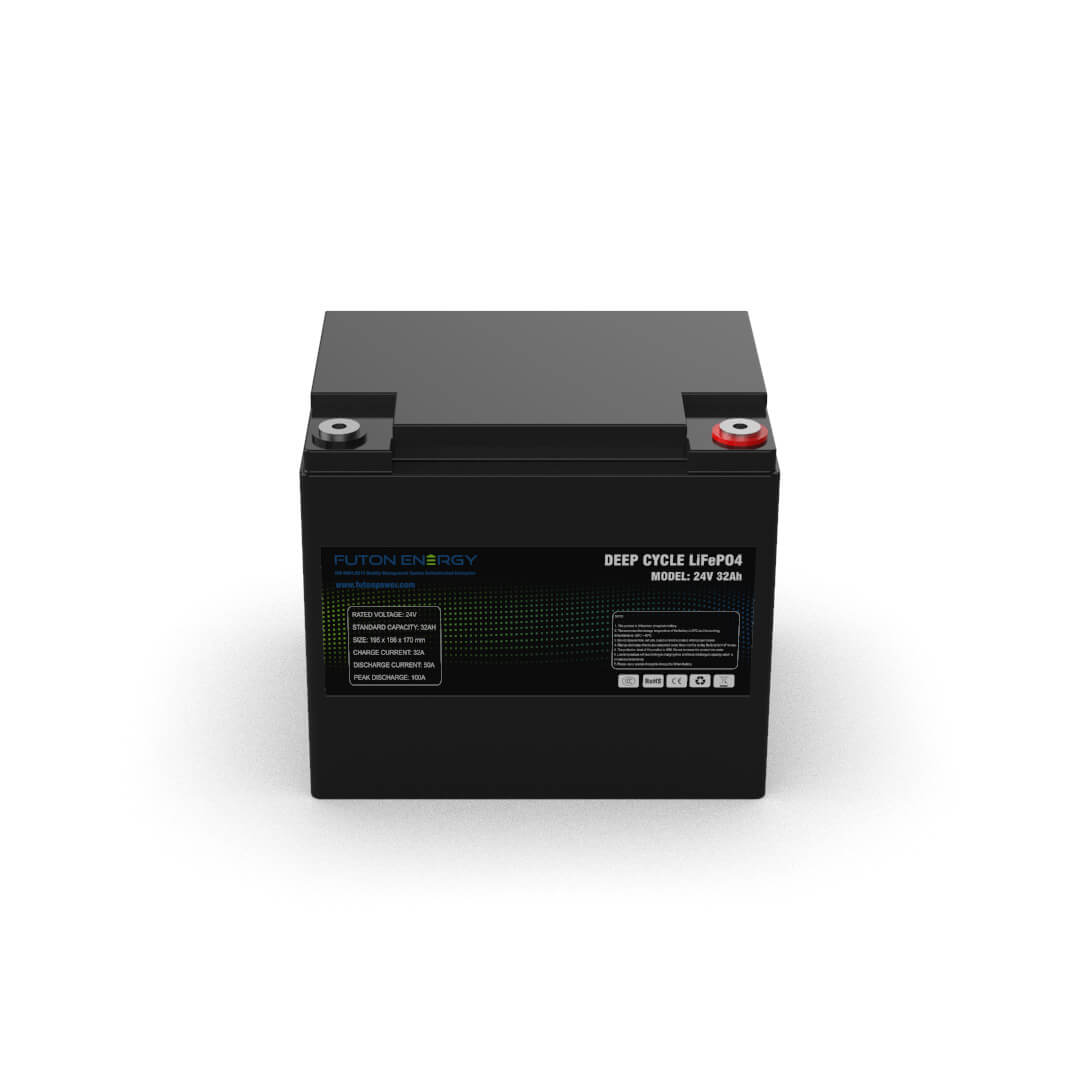

24V 32Ah Lithium Battery

24V 32Ah lifepo4 battery, lithium iron phosphate battery with long cycle life (2000+ cycles), the ideal power source for off-grid solar systems, eBikes, and UPS

Additional information

Dimensions

195x170x166mm(7.67"x 6.69"x 6.53")

Weight

7.8Kg(17.2lb)

Nominal Voltage

25.6V

Nominal Capacity

32Ah

Product Details

LiFePO4 batteries are known as lithium iron phosphate batteries. They are made of lithium iron phosphate as the cathode and graphite carbon electrode as the anode. They have a lower operating voltage and density of energy.

They have low electrical conductivity making their charge-discharge profiles flat. They are also built using a Fail-Safe Built-in Battery Protection System (BMS), making it difficult to explode even in extreme conditions. The (BMS) also helps ensure the lithium battery is optimized to deliver outstanding performance and guarantee durability.

24v 32AH LiFePO4 batteries are very light and simple to use instead of other lead-acid batteries. They are suitable for single-seat ride-on buggies. The lithium battery is designed for machines with two motors.

Their main applications are in:

  • Solar-Wind Systems
  • Power Switch on City Grid
  • RV Motorhome
  • Golf Carts
  • Marine and other Military equipment for backups



Life Cycle

With more than 2,000 cycles at 80% DOD(depth of discharge).

Operating Temperature

Charge: 0°C to +60°C

Discharge: -20°C to +60°C

Charge

32A max, please use the LiFePO4 charger to charge the battery.

Discharge

32A continuous discharge current, 64A peak discharge current.

BMS(Battery Management System)

Protect the battery from high voltage, low voltage, over-charge, over-discharge, short circuit, and high temperature.

Performance Characteristics

Production Line



Package
